Specifications
- 2.4GHz ISM bands
- Transmit power up to 30dBm (1000mW)
- Base on LoRa modulation technology to obtain excellent anti-interference performance
- Frequency hopping spread spectrum (FHSS)
- Data link rate up to 8KB/s
- Radio controler refresh rate up to 150Hz
- Compatible with QGroundControl on Android
- Built in Bluetooth for communication with phone
- NANO designed, compatible with most of compact radio controller such as radiomaster pocket, jumper t-pro, etc
Working Mode
| Mode | long-range | standard | high-speed |
| Data Link Rate | 2.4K Byte/s | 4K Byte/s | 8K Byte/s |
| RC Rate | 50Hz | 100Hz | 150Hz |
| Distance | ★★★ | ★★ | ★ |
| Baudrate | 57600 | 57600 | 115200 |
OLED Info
Receiver
- Max RF Power: 27dBm (500mW)
- LED Indicator: solid on when connected; blinks slowly when disconected; blinks rapidly in matching status
- Bind Button: Keep the button pressed and power on to enter binding mode, the LED will blink rapidly
How to Bind TRS Devices Together
- STEP1: Keep the bind button on the receiver pressed and power on to enter binding mode, the LED will blink rapidly
- STEP2: Reboot the radio controller with TRS tx module, the tx module and receiver will bind together within few seconds
Physical

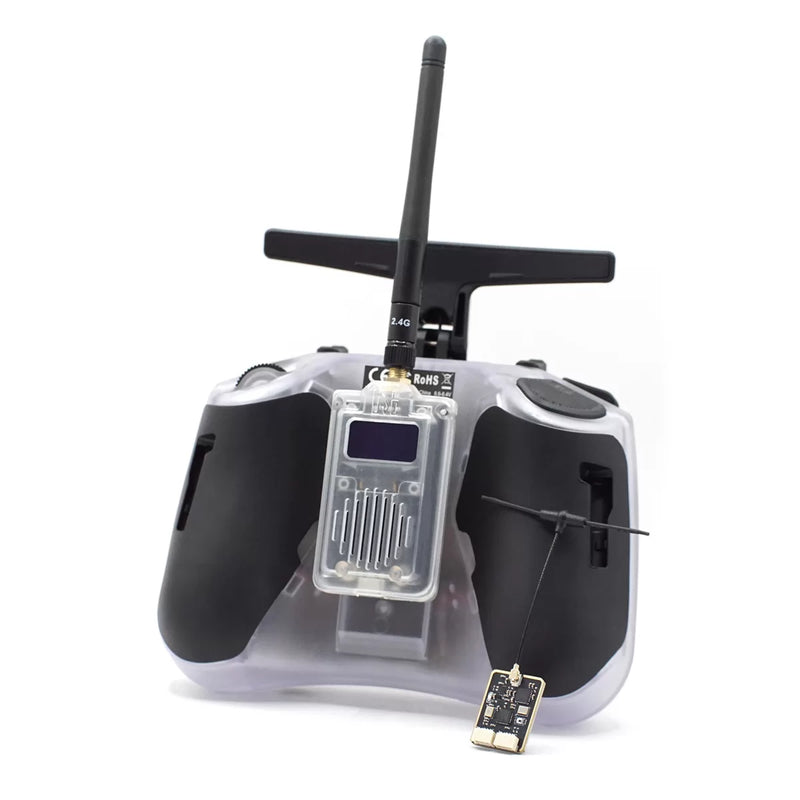

TX Module
- Dimensions: 76.8 x 40 x 18.7 mm
- Weight: 32g
Receiver
- Dimensions: 24 x 18.2 x 5.8 mm
- Weight: 2.5g
