Introduction

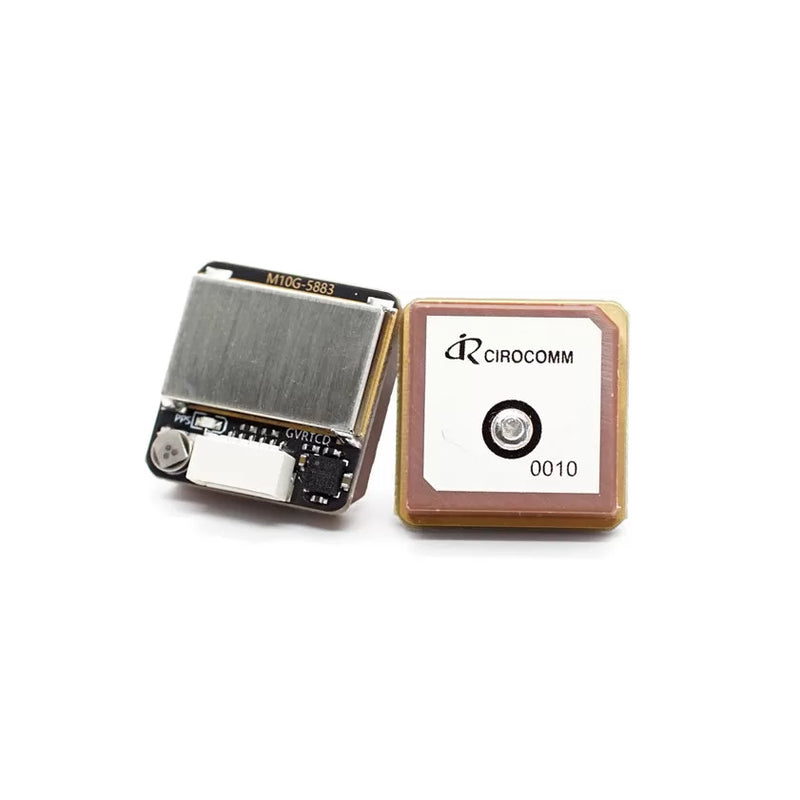

- M10G-5883 GNSS module integrates the u-blox 10th generation receiver chip – M10050, and the magnetic sensor – QMC5883L. It supports all L1 GNSS signals (GPS/GLONASS/Galieo/BeiDou) and can use up to 32 satellites simultaneously for navigation.
- The high-gain 18 x 18 x 4mm patch antenna provides the best balance between performance and small size.
- Built-in flash, parameters can still be saved when module lost power.
Specifications
- GNSS Receiver: U-BLOX M10 (M10050)
- Magnetic Compass: QMC5883L
- Antenna: 18x18x4mm
- GNSS System Support: GPS L1 /CA; GLONASS L10F; BeiDou B1L/B1C; Galileo E1B/C; QZSS L1 C/A/S; SBAS L1 C/A
- Concurrent: 3 (GPS/BeiDou/Galileo(default) or GPS/GLONASS/Galileo), when Beidou B1L is turned off, it becomes possible to use 4 satellite systems at the same time: GPS+BeiDou(B1C)+GLONASS+Galileo
-
Max Navigation rate: 5Hz
-
Max satelite num: 32
- Input Voltage: 5V
- Current: 30mA
- Output Interface(GPS): UART (3.3V LVTTL)
- Interface(Compass): I2C
- UART Baudrate: 115200(default)
- Output Protocol: UBX-PVT(default)
- PPS LED: Blue (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
Flight Controller Firmware Required
- INAV: >=5.0.0
- Betaflight: >=4.3.0
- Ardupilot: >=4.3.0
- PX4: >= 1.14.0
Physical
- Dimensions: 20 x 20 x 7.8 mm
- Weight: 7g
- Connector: SH1.0-6P 1.0mm pitch
- 3D-printed battery strap GPS mount
Links
- u-center
- u-center-2-user-guide
-
u-blox-M10-SPG-5.10_InterfaceDescription
FC Firmware Required
- INAV: >=5.0.0
- Betaflight: >=4.3.0
- Ardupilot: >=4.3.0
- PX4: >= 1.14.0
